技术参数/Technical data
◆使用于可控地提升或降低负载
Used for lifting or lowering loads with control
◆力值范围：20N-1000N/ Force range：20N-1000N
◆支撑杆直径Φ6-Φ10mm，QPQ表面处理
Rod diameter :Φ6-Φ10mm ,QPQ plated
◆耐久寿命：3万次/Lifetime 30,000 cycles
◆使用环境温度：-40℃～+90℃
Operating temperature:-40℃～+90℃
◆外筒材质：钢，表面处理：喷塑
Outer body material：steel with power coating

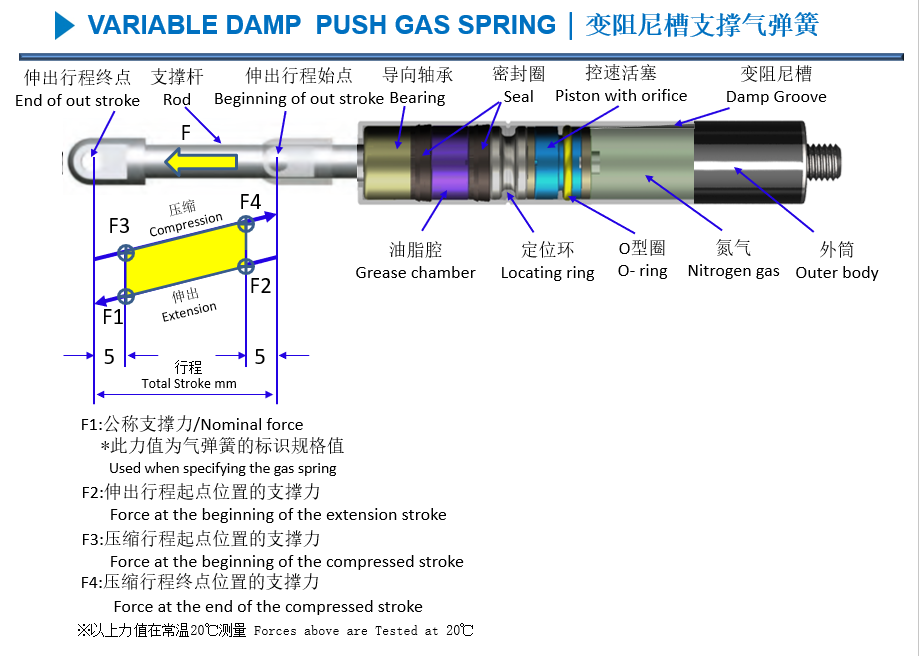

◆变阻尼槽减速缓冲/Controlled speed by
variable damp groove along cylinder
◆防漏气双密封圈+低粘力油脂腔
Double seals+Grease chamber for low breakaway force
